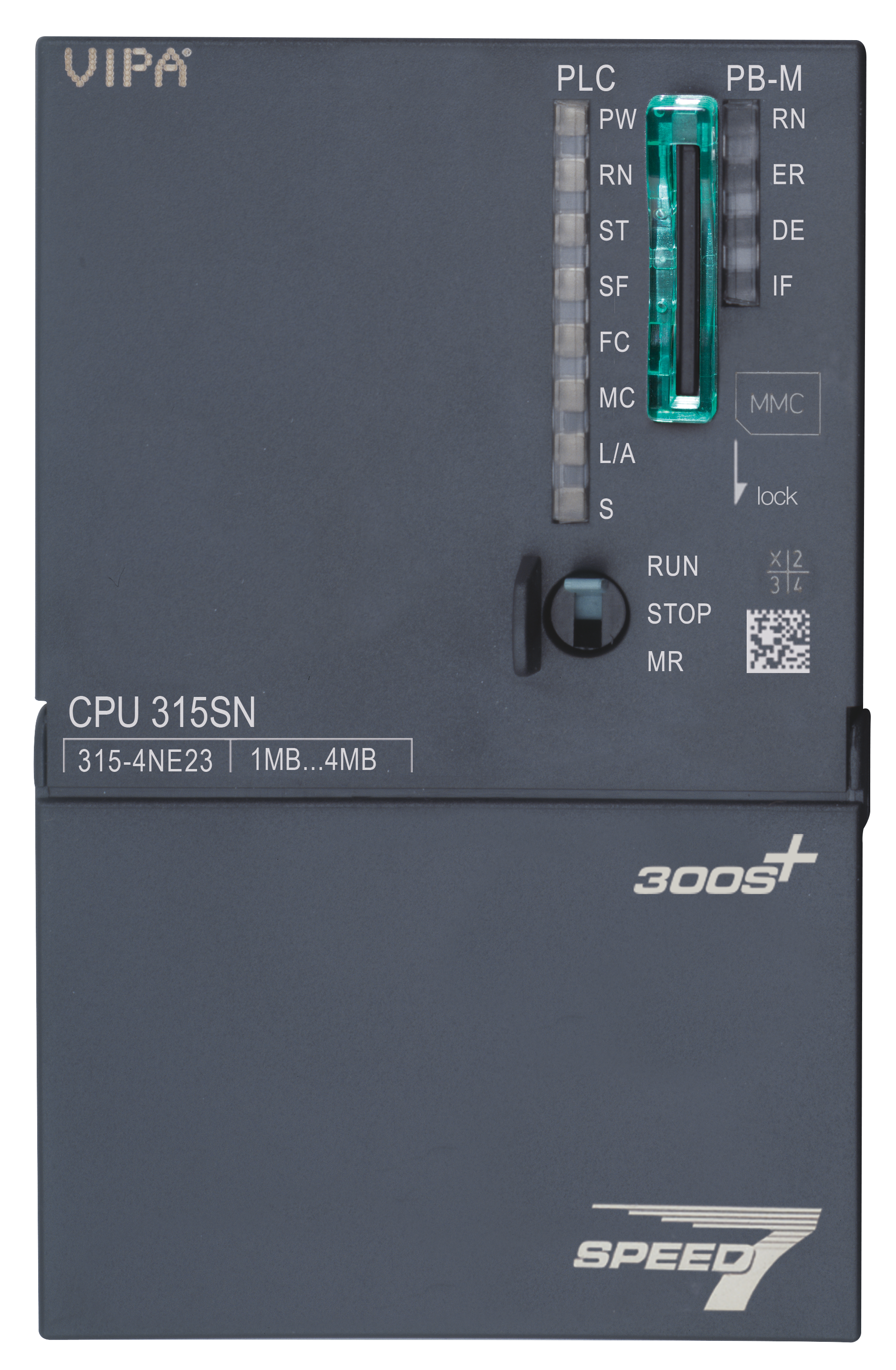

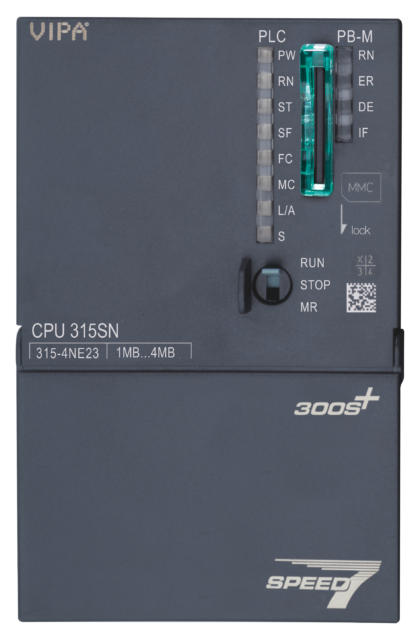

VIPA/Yaskawa 315-4NE23

VIPA/Yaskawa 315-4NE23
VIPA CPU 315SN
Powered by SPEED7
Work memory [KB]: 1.024…4.096
Integrated Ethernet CP343-Lean
Interface [RJ45]: Ethernet PG/OP communication
Interface [RJ45]: active Ethernet CP343 & PG/OP-communication
Interface [RS485]: MPI
Interface [RS485]: PROFIBUS master/slave, PtP: ASCII, STX/ETX, 3964(R), USS master, Modbus master/slave
SD/MMC card slot with locking, up to 32 modules stackable, programmable with WinPLC7, SIMATIC Manager and TIA Portal
