Beschreibung

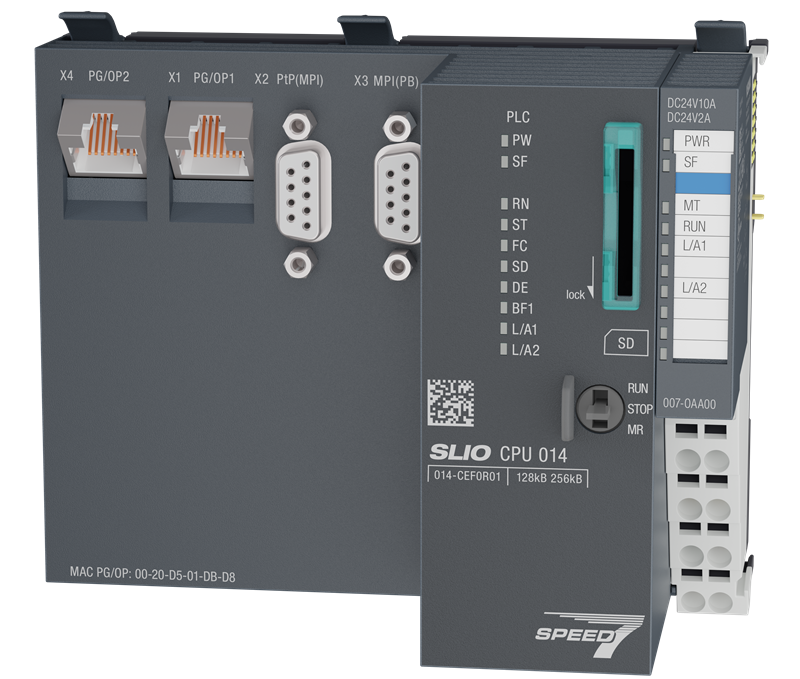

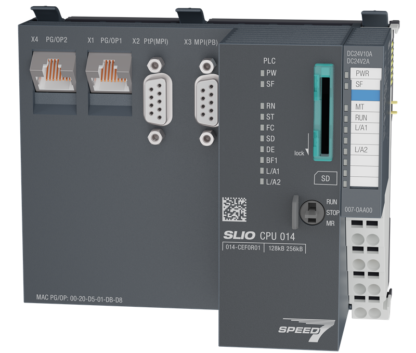

CPU 014
Powered by SPEED7
Work memory [KB]: 128…256
Integrated PROFINET Controller (limited to 8 Devices) / I-Device
Interface [1x RJ45]: PROFINET, ModbusTCP master/slave, openCommunication
Interface [1x RJ45]: active Ethernet PG/OP communication with DHCP support, switch
Interface [2x RS485]: MPI, PtP: ASCII, STX/ETX, 3964(R), USS master, Modbus master/slave
Optional: PROFIBUS master/slave
Integrated OPC UA server and Web server
SD card slot with locking, up to 64 expansion modules, configurable with SPEED7 Studio, SIMATIC Manager and TIA Portal
OPC UA available from hardware version 2
